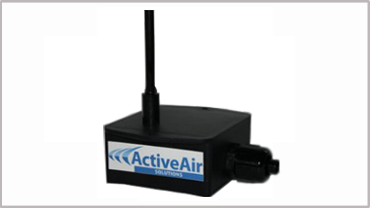

| Ionization Detector with BAS Interface |
 |
Specification
|
|
|
Dimensions** |
1.6"H x 3.2"W x 4.0"L
|
|
Mounting Box |
ABS plastic rated UL-V0 |
|
Electrode Material |
Copper |
|
Electrode Length |
3.0"
|
|
Weight |
1 pound |
|
Temperature Range: |
-20F to 160F |
| Humidity Range |
0-99% non-condensing |
| Mounting Location |
Duct or Plenum |
|
 |
|
|
Electrical |
|
|
Input Voltage |
12VDC or 24VDC |
|
Power Consumption |
< 0.5 watts |
|
|
|
|
|
|
Sensing Parameters |
|
|
Positive Ion Range: |
1,000 to 50 million ions/cc |
|
Negative Ion Range: |
1,000 to 50 million ions/cc |
|
Ion Alarm Status: |
BAS dry contact output, NO and NC contacts available |
|
Local LED Indication: |
Power On, Ion Output On |
|
Operation: |
Dry contact relay de-energizes when ion output falls below
factory preset detection level |
|
|
|
|
|
|
