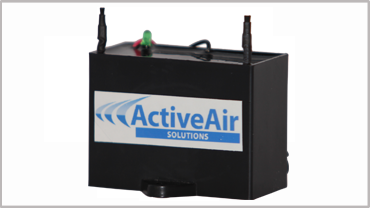

AAS SCR2400

Specification
 Air Flow Capacity (CFM)    0 to 2,400
 Pressure Drop (Inches W.C.)    0.01
 Housing Material Aluminum    ABS
 Weight (lbs)    0.25
 Max Operating Temperature (F)     160
 Dimensions - Inches (L x W x H)    2.4 x 1.2 x 1.7
Electrical
 Voltage*    24/115/230-277VAC
 Power Consumption    9.6VA
 Current Draw (Amps)    0.40 / 0.08 / 0.04
 Frequency (Hz)    50 or 60
 Internal Fuse     0.5 / 0.25 / 0.25
 Field Electrical Connections**    Tinned Wire
 Approvals / Listings    UL
